5 Axis Machining Titanium

What is 5 Axis Machining Titanium

5 Axis Machining Titanium refers to the precision machining of titanium components using a 5-axis CNC (Computer Numerical Control) machine. This advanced machining process allows for the creation of complex parts with high accuracy and efficiency. Here’s an overview of what it entails:

Key Characteristics of Titanium

High Strength-to-Weight Ratio: Titanium is known for its excellent strength while being relatively lightweight, making it ideal for aerospace, medical, and automotive applications.
Corrosion Resistance: Titanium exhibits exceptional resistance to corrosion, particularly from seawater and various chemicals.
Biocompatibility: Titanium is biocompatible, meaning it is suitable for medical implants and devices.
Thermal Stability: Titanium maintains its properties over a wide temperature range, from cryogenic levels to high heat.

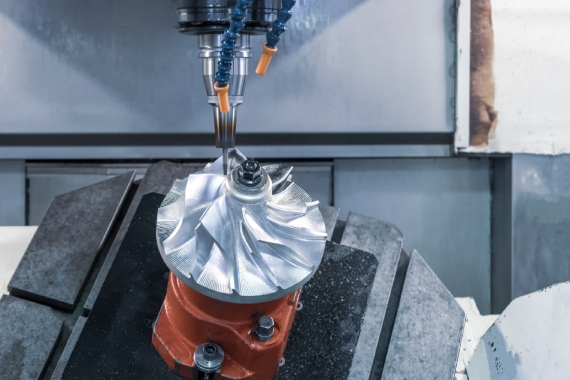

Five-axis-CNC-machining-center-cutting-jet-engine-turbine

Advantages of 5 Axis Machining

Complex Geometries: The ability to move a workpiece along five different axes simultaneously allows for the machining of intricate and complex shapes that would be difficult or impossible with traditional 3-axis machines.
Reduced Setups: With 5-axis machining, fewer setups are needed to machine a part from different angles, improving efficiency and reducing the risk of errors.
Improved Surface Finish: The enhanced movement capabilities allow for better access to the workpiece, resulting in superior surface finishes.
Increased Precision: Enhanced control over the machining process leads to higher precision and tighter tolerances.

Machining Challenges and Solutions

Tool Wear: Titanium’s hardness can lead to significant tool wear. Using carbide or diamond-coated tools can mitigate this issue.
Heat Generation: Machining titanium generates a lot of heat, which can affect tool life and part quality. High-pressure coolant systems or cryogenic cooling can help manage heat.
Rigidity and Stability: Maintaining rigidity in the setup is crucial to prevent vibrations that can compromise accuracy. Advanced fixturing and machine stability are essential.
Cutting Parameters: Optimizing cutting speeds, feed rates, and depth of cut is critical to balancing tool life and machining efficiency.

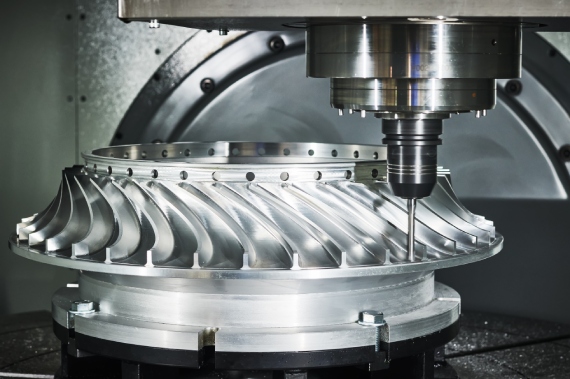

5-axis-CNC-milling-machine-work-metal-processing-impeller

Applications of 5 Axis Machining Titanium

Aerospace: Engine components, airframe parts, and landing gear that require high strength, low weight, and precision.
Medical Devices: Implants, surgical instruments, and prosthetics benefiting from titanium’s biocompatibility and strength.
Automotive: High-performance engine components, exhaust systems, and structural parts that demand durability and lightweight characteristics.
Military and Defense: Components for defense systems that require resilience and reliability under extreme conditions.

Forcbeyond’s Expertise

At Forcbeyond, we excel in 5-axis titanium machining, utilizing state-of-the-art CNC machines and advanced techniques to produce high-precision components. Our expertise allows us to meet the stringent requirements of industries that depend on titanium’s unique properties, ensuring the highest quality and performance in every part we manufacture.

5 Axis Machining Titanium – Titanium Alloy Grade 2

Applications for Titanium Casting & Machining Alloy Grade 2
Chemical Processes	Grade 2 titanium is highly resistant to chemical environments including oxidising, alkaline, organic acids and compounds, aqueous salt solutions and hot gases. Its corrosion resistance holds up in, nitric acid, mildly reducing acids and wet chlorine or bromine gas.
Marine	In seawater, Grade 2 is resistant to corrosion at temperatures up to 315°C, rendering it ideal for a variety of marine uses.

5 Axis Machining Titanium – Titanium Alloy Grade 5

Applications for Titanium Casting & Machining Alloy Grade 5
Industries	Aerospace, medical, marine and chemical processing industries and oil field services.
Plate	The material is worked to the closest size of the desired part and the grain structure of the finished piece is more homogenous.
Heat Barrier	Titanium stops the heat and does not transfer to the rest of the assembly.

Surface Treatment for 5 Axis Machining Titanium

Surface Treatment for Casting & Machining Titanium Alloys
Corrosion Resistance and Surface Treatment	1) The atmospheric oxidation treatment 2) Precious metal coating 3) Dry coating TiC, TiA membrane (CVD, w2, PCVD) 4) Pb + Pt + injection (ion beam and electron beam)
Wear Resistance Surface Treatment	1) Wet coating 2) Thermal diffusion method 3) Welding method 4) Sputtering 5) CVD, PCD, PCVD method 6) Ion implantation
Then Surface Treatment	1) Surface finish 2) The mirror finishing 3) Color
