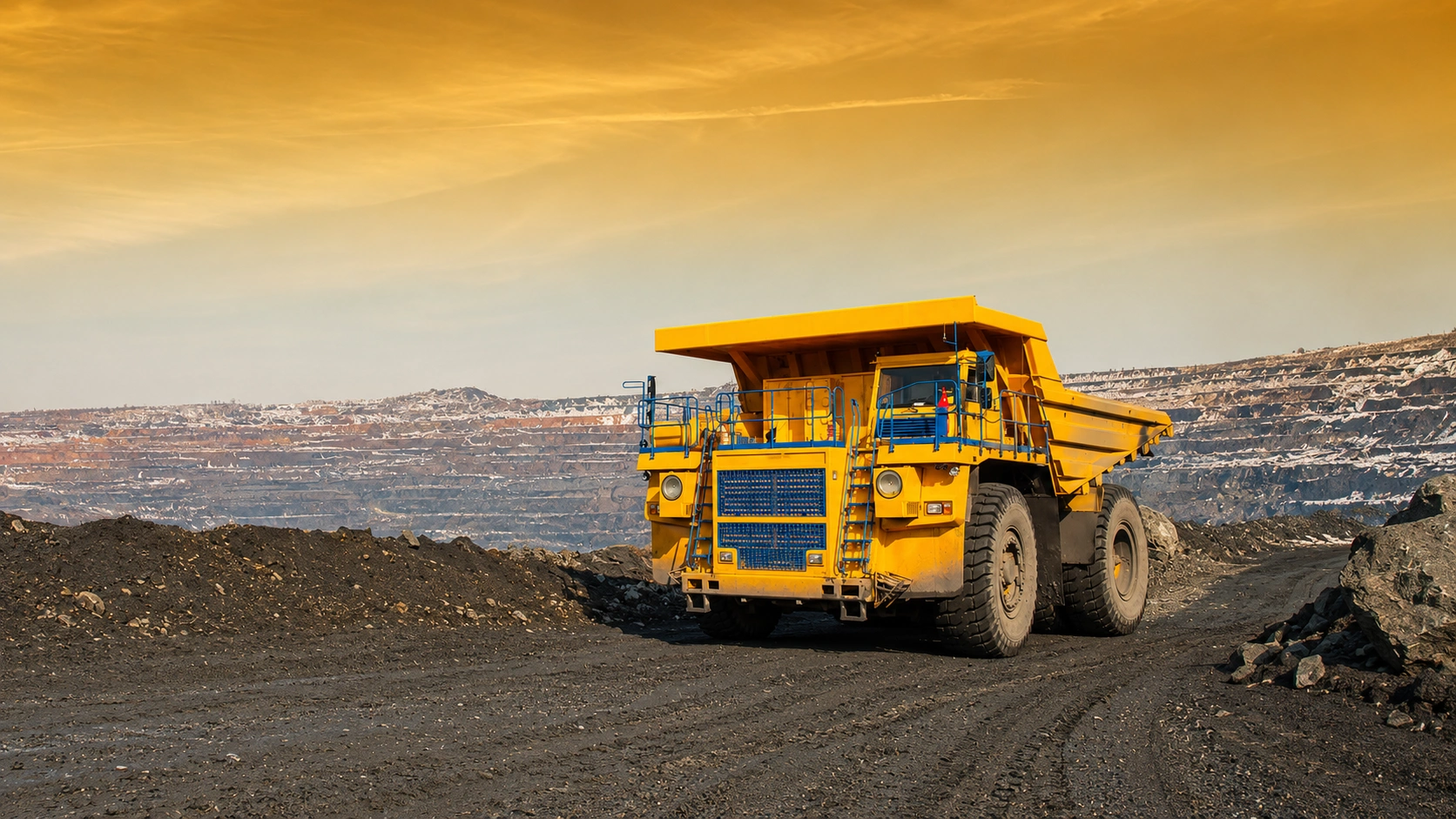

Heavy mining haul truck operating in an open-pit mine

Mining, Heavy Equipment & Agricultural Components

Manufacturing Support for Mining, Earthmoving and Agricultural Equipment

Mining, construction, earthmoving, material-handling, and agricultural equipment operate under abrasion, impact, cyclic loading, contamination, corrosion, vibration, and outdoor exposure.

ForceBeyond supports OEM and replacement-component programs through sand casting, forging, precision machining, heat treatment, surface finishing, inspection, assembly, and supply-chain coordination.

Final material, hardness, heat treatment, casting size, machine capacity, wear performance, coating system, assembly scope, and inspection plan must be confirmed for the selected component and operating environment.

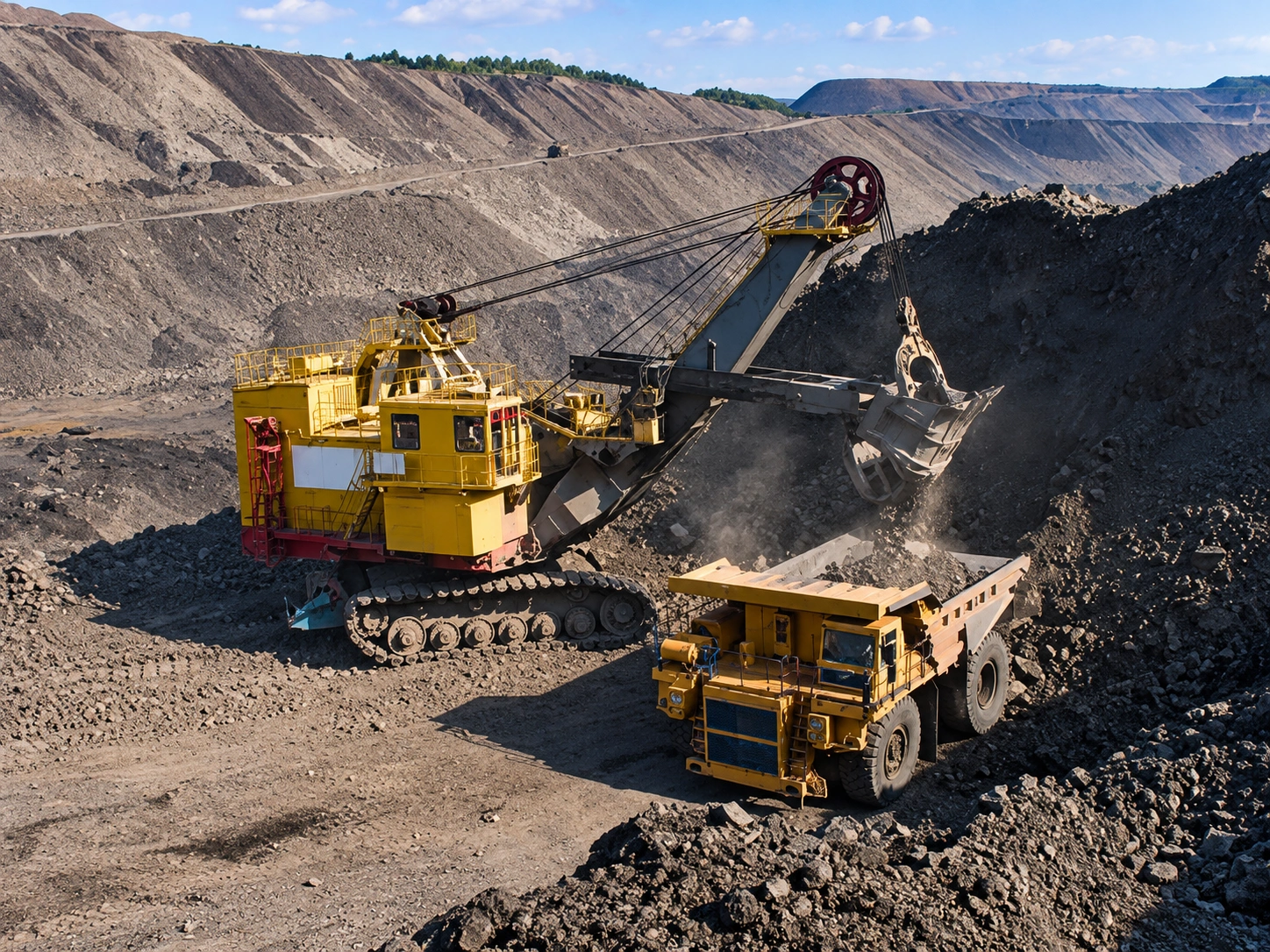

Heavy-duty mining and earthmoving equipment components

Mining, Heavy Equipment and Agricultural Application Matrix

Equipment Area	Representative Components	Potential Manufacturing Routes	Key Engineering Requirements
Excavation and Earthmoving	Bucket teeth, adapters, cutting edges, track links, rollers, pins, bushings, brackets, cylinder mounts	Sand casting, investment casting, closed-die forging, open-die forging, machining, Q&T, induction hardening	Abrasion, impact, fatigue, fit, hardness profile, fracture resistance, weldability, and field replacement
Crushing and Screening	Jaw plates, mantles, concaves, hammers, breaker bars, liners, screens, wear plates	High-manganese or high-chromium casting, heat treatment, machining, hardfacing, inspection	Impact abrasion, work hardening, section thickness, crack resistance, wear pattern, and change-out life
Slurry and Material Handling	Impellers, volutes, suction liners, pump casings, chutes, elbows, wear inserts, conveyor hardware	High-chromium iron casting, alloy-steel casting, stainless casting, machining, coating, balancing	Erosion, abrasion, corrosion, hydraulic profile, pressure integrity, balance, and replaceable wear zones
Haulage and Drivetrain	Axle housings, wheel hubs, carriers, shafts, gears, brake housings, bearing supports, suspension hardware	Ductile iron or steel casting, forging, ring rolling, machining, heat treatment, assembly	Fatigue, impact, torque, alignment, bearing fits, lubrication, balance, and structural integrity
Agricultural Equipment	Frame brackets, gearbox housings, axle housings, plow points, tines, hubs, seed-meter housings, covers	Sand casting, die casting, closed-die forging, machining, coating, bearing installation, kitting	Soil abrasion, moisture, fertilizer exposure, cyclic load, corrosion, cost, field repair, and assembly efficiency

Heavy Equipment Component Portfolio

Component Family	Representative Hardware	Common Product Forms	Typical Verification
Ground-Engaging Tools	Bucket teeth, adapters, cutting edges, shanks, ripper tips, wear caps	Alloy-steel castings, closed-die forgings, fabricated or hardfaced systems	Hardness mapping, chemistry, mechanical testing, dimensional inspection, wear-trial validation
Crusher and Mill Wear Parts	Jaw plates, mantles, concaves, hammers, liners, breaker bars	High-manganese steel, high-chromium iron, alloy-steel castings	Chemistry, hardness, microstructure, visual inspection, dimensional inspection, crack detection
Track and Undercarriage Components	Track links, rollers, idlers, sprockets, pins, bushings, guides	Forgings, castings, machined alloy steel, induction-hardened components	Case depth, hardness profile, dimensions, fatigue-related features, surface NDT
Drivetrain and Hub Components	Axle housings, hubs, carriers, gear blanks, shafts, brake housings, bearing supports	Ductile-iron castings, steel forgings, rolled rings, machined assemblies	CMM, UT or surface NDT as applicable, bearing fits, runout, balance, assembly inspection
Agricultural Hardware and Modules	Brackets, housings, plow points, tines, hubs, bearing modules, linkage parts, covers	Castings, forgings, die castings, machined parts, coated and assembled modules	Dimensions, coating, torque, bearing fit, seal installation, labeling, packaging, traceability

Wear-Resistant Materials and Heat-Treatment Strategy

Material Family	Representative Uses	Primary Selection Drivers
Quenched-and-Tempered Alloy Steels	Pins, shafts, links, teeth, adapters, gears, structural and impact-loaded hardware	Strength, toughness, fatigue, hardenability, section size, weldability, and target hardness
High-Manganese Steels	Jaw plates, crusher liners, impact-loaded wear components	Work-hardening behavior, impact energy, section size, carbide control, heat treatment, and service loading
High-Chromium and Ni-Hard Irons	Slurry pumps, liners, impellers, chutes, and abrasion-dominant wear parts	Carbide fraction, hardness, corrosion, impact tolerance, section thickness, and machinability
Ductile and Austempered Ductile Iron	Housings, carriers, hubs, suspension parts, gears, agricultural and drivetrain components	Strength, ductility, fatigue, damping, machinability, section sensitivity, and heat treatment
Carbon and Low-Alloy Cast Steels	Large structural castings, housings, brackets, links, and pressure or impact-loaded components	Castability, weldability, toughness, heat treatment, NDT, repair policy, and corrosion protection

Published hardness values should not be applied generically. Final hardness and depth depend on alloy, section size, heat-treatment route, cooling rate, geometry, and required toughness.

Sand Casting for Large and Wear-Resistant Components

Large structural castings: housings, frames, hubs, counterweights, axle components, pump bodies, and equipment structures.
Wear castings: crusher, slurry, liner, impeller, and ground-engaging components in application-specific alloys.
Molding route: green sand, no-bake, shell, or other foundry processes may be selected by size, alloy, finish, quantity, and complexity.
Feeding and solidification: tooling, risers, chills, simulation, section transitions, and machining stock affect internal quality.
Repair and acceptance: weld repair, blending, impregnation, and casting acceptance should be defined before production.

See sand casting and carbon and low-alloy steel casting.

Forged Pins, Shafts, Links and Drivetrain Hardware

Closed-die forging: repeatable near-net links, levers, teeth, adapters, hubs, brackets, and drivetrain parts.
Open-die forging: large shafts, blocks, hubs, discs, rings, and low-volume heavy preforms.
Rolled rings: bearing rings, gear blanks, hubs, flanges, and circumferential drivetrain hardware.
Grain flow: forging orientation, reduction, heat treatment, and machining allowance should support fatigue and impact loading.
Surface hardening: induction hardening, carburizing, nitriding, or other processes may be considered where core toughness and surface wear must be balanced.

Review closed-die forging, open-die forging, and rolled-ring forging.

CNC Machining for Large, Abrasive and Heat-Treated Components

Heavy machining: bearing bores, shaft journals, flange faces, bolt patterns, gear and seal interfaces, and large structural datums.
Hard machining: control tool wear, heat, chatter, surface integrity, and distortion in Q&T or induction-hardened components.
Cast geometry: manage stock variation, draft, parting lines, datum transfer, and fixturing from rough cast surfaces.
Wear components: balance machining cost against sacrificial wear zones and replaceable inserts.
Inspection: use CMM, portable metrology, gauges, runout, hardness, and surface-finish checks according to part size and function.

See precision machining and multi-axis CNC machining.

Agricultural Equipment Castings, Forgings and Assemblies

Structural castings: tractor brackets, gearbox housings, axle housings, counterweights, and frame components.
Forged wear parts: plow points, tiller tines, hitch components, cutter hardware, and high-load linkages.
Aluminum components: covers, housings, controls, thermal parts, and lightweight cab or metering hardware.
Hub and bearing modules: machined hubs, bearings, seals, retaining hardware, lubrication, inspection, and packaging.
Point-of-use kits: grouped parts, labels, hardware, protective packaging, and line-side delivery according to customer requirements.

Coatings and Surface Protection for Outdoor Equipment

E-coating: immersion-based corrosion protection for conductive parts with suitable pretreatment.
Powder coating: durable color and barrier protection for brackets, frames, housings, and agricultural hardware.
Liquid paint: primers and topcoats for large components, field repair, UV exposure, and customer-specific systems.
Metallic coatings: zinc, plating, metallizing, or application-specific sacrificial systems where suitable.
Wear surfaces: hardfacing, overlays, or replaceable wear plates may be used where coating alone is insufficient.

Review surface finishing and protective coating services for process-to-material and roughness guidance.

Kitting, Bearing Installation and Sub-Assembly

Press-fit assembly: bearings, bushings, sleeves, pins, seals, and retainers installed with controlled equipment and documented limits.
Torque control: fastener specification, lubrication, sequence, torque-angle, witness marking, and records where required.
Lubrication and cleanliness: define grease, oil, contamination limits, preservation, and storage requirements.
Functional verification: runout, rotation, end play, preload, seal condition, leakage, or customer-specific tests.
Packaging: line-side kits, individual protection, corrosion prevention, barcode or label control, and returnable packaging.

See assembly and kitting for broader module and packaging support.

Inspection and Testing for Heavy Equipment Components

Method	Typical Use	Planning Considerations
Hardness and Case-Depth Testing	Q&T, induction-hardened, carburized, or wear-resistant components	Location, surface preparation, scale, conversion limits, case profile, and acceptance range
Radiographic or Ultrasonic Testing	Selected castings, forgings, rings, shafts, and critical sections	Geometry, section thickness, grain structure, attenuation, technique, scan plan, and acceptance criteria
Surface NDT	Penetrant or magnetic-particle inspection for surface-breaking discontinuities	Material compatibility, surface condition, sensitivity, personnel qualification, and inspection stage
Dimensional Inspection	Bores, fits, profiles, runout, bolt patterns, linkage geometry, and assembly interfaces	Part size, datums, temperature, portable versus fixed metrology, fixturing, and uncertainty
Wear and Field Validation	Comparative wear trials, impact tests, service-life evaluation, or customer field testing	Duty cycle, material handled, load, speed, moisture, maintenance, installation, and failure mode

Review testing and inspection capabilities for detailed method-selection and reporting guidance.

Value Engineering for Heavy OEM Components

Near-net-shape design: reduce raw material, machining stock, cycle time, and scrap where geometry and tooling permit.
Material optimization: align alloy, hardness, toughness, wear mode, corrosion, and cost with the actual duty cycle.
Replaceable wear zones: use inserts, liners, teeth, overlays, or sacrificial components to reduce whole-assembly replacement.
Process consolidation: coordinate casting or forging, machining, heat treatment, coating, assembly, and inspection under one managed program.
Packaging and kitting: simplify receiving and line-side handling through defined kits, labels, and reusable packaging.

Heavy Equipment Supply Chain and Program Management

Capacity review: verify casting weight, mold size, press force, furnace size, machine envelope, table load, and crane capacity.
Long-lead planning: coordinate alloy, tooling, patterns, dies, heat treatment, machining, wear trials, and coating capacity.
Source qualification: evaluate foundries, forges, heat treaters, machine shops, coating providers, laboratories, and assemblers.
Spare and service parts: define inventory, ownership, reorder points, tooling maintenance, and obsolescence planning.
Logistics: plan oversized freight, corrosion protection, export packaging, warehousing, line-side kits, and delivery milestones.

Review global footprint and logistics for multi-region sourcing, inventory, customs, packaging, and delivery planning.

Mining, Heavy Equipment and Agricultural RFQ Checklist

Technical package: drawing, CAD, revision, bill of materials, component function, and design authority.
Material: alloy, product form, specification, target hardness, heat treatment, case depth, and approved sources.
Service conditions: impact, abrasion type, material handled, load, speed, temperature, moisture, chemicals, and duty cycle.
Manufacturing scope: casting or forging route, machining, coating, hardfacing, assembly, kitting, and packaging.
Inspection: NDT, hardness, chemistry, microstructure, dimensions, balance, assembly checks, and acceptance criteria.
Commercial: prototype quantity, annual demand, lot size, tooling, target delivery, spares, and program duration.

Frequently Asked Questions: Mining & Heavy Equipment

How can wear life be improved for bucket teeth, liners, and crusher components?

Wear performance depends on material chemistry, heat treatment, hardness profile, impact loading, abrasion type, section size, geometry, and installation. Candidate solutions may include quenched-and-tempered alloy steels, high-manganese steels, high-chromium irons, hardfacing, overlays, and replaceable wear systems. Final selection should be validated against the actual duty cycle.

Can ForceBeyond support large sand castings for mining and heavy equipment?

ForceBeyond may coordinate small through large sand-casting programs through qualified foundry resources. Actual casting weight, envelope, alloy, mold process, heat treatment, machining, NDT, and handling capability must be confirmed for the selected facility and project.

What coatings are used for agricultural and outdoor equipment?

Potential systems include e-coating, powder coating, liquid paint, zinc-based coatings, plating, and project-specific corrosion-protection systems. Selection depends on substrate, pretreatment, fertilizer and chemical exposure, UV, abrasion, edge coverage, thickness, appearance, and required test method.

Can ForceBeyond provide assembled hubs, bearing modules, or kits?

Project-specific assembly and kitting may include bearing installation, seals, retaining hardware, torque-controlled fasteners, lubrication, labeling, inspection, and packaging. Fit, cleanliness, torque, traceability, testing, and packaging requirements should be defined before quotation.

Review a Mining, Heavy Equipment or Agricultural Component Program

Send your drawings, material, wear conditions, impact loads, quantity, heat treatment, hardness, coating, machining, inspection, assembly, packaging, and delivery requirements for an engineering review.
